Services

Syntech Engineers   →  Services

Others

DEFENCE

Other Defence Projects We Did

Besides the projects mentioned in previous pages, we also supplied many other equipments to the Defence Industry. Among them are:

  • Personnel Equipment Transporter (PET) for the CBRE, Combat Engineers
  • Mobile Control Towers for the Republic of Singapore Air Force (RSAF)
  • Runway Sweepers for the RSAF
  • Modular Spares Storage System (MS3) for the Maintenance Engineering Support Units
  • Mobile, Equipping and Storage Container (MES) for the Singapore Armed Forces
  • Tremorlator to simulate the experience of earthquake for Singapore Civil Defence Force (SCDF)

Rapidly Deployable Maritime Container

DEFENCE

Rapidly Deployable Maritime Container

The Republic of Singapore Navy (RSN) awarded us a contract to design and build two Rapidly Deployable Maritime Container (RDMC). The RDMC was built on an ISO container footprint and can be deployed within 10 minutes into an operating theatre with two operating beds. In addition, it can also be converted into an ICU with 4 beds.

The RDMC is self-supporting with its own power supply from a trailer mounted generator, UPS, air-conditioning, waste discharge piping and medical equipment needed for an operating theatre.

In 2016, the RDMC won a MINDEF Innovation Project Award. This speaks volume for our company engineering design capability.

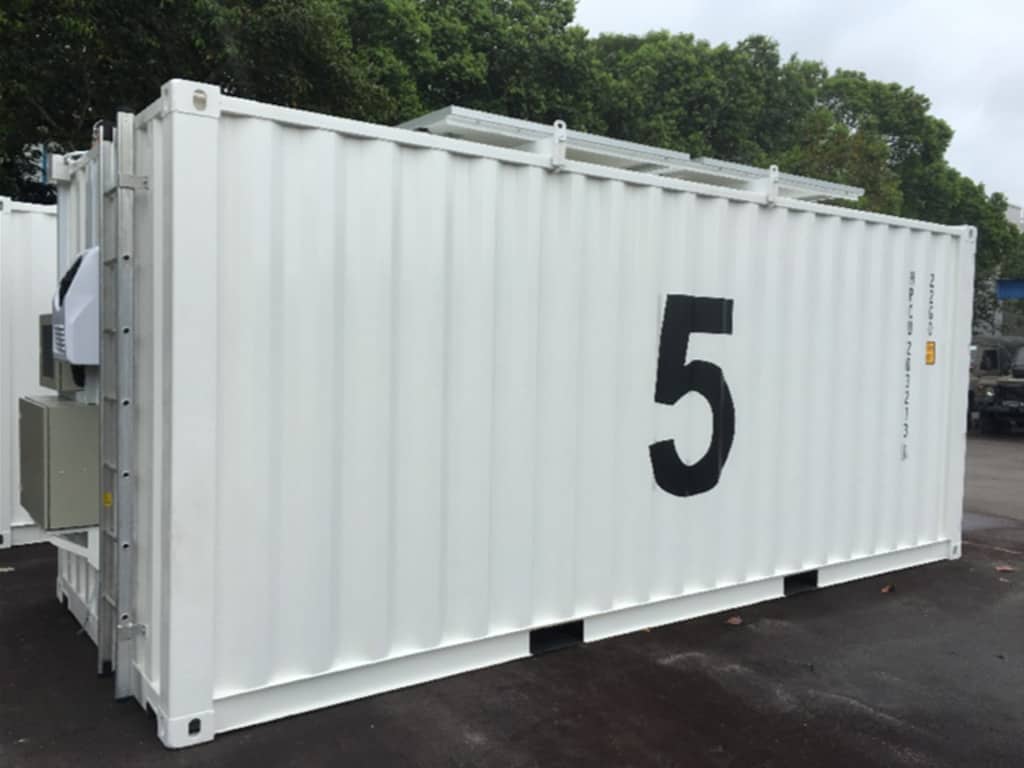

Storage Containers (Solar System)

DEFENCE

Storage Containers (Solar System)

In 2016, the SAF has a requirement to store sensitive equipment in ISO containers left in the open. The equipment stored is heat sensitive but yet the location where they are stored has no electrical power supply.

Our company came out with a design whereby we designed an ISO container that is insulated and powered by DC air-conditioner. These air-conditioner are solar powered and is designed to keep the equipment stored below 35 degree C as well as to reduce the humidity within the containers. We incorporated an alarm system to sound when the temperature exceeded that level and a data logger to monitor the temperature at all times.

Solar panels are mounted on the roof of the ISO container to power the air-conditioning system. Tie down points are also incorporated to secure the containers when needed.

In total, we supplied 11 units to all the various SAF camps in Singapore.

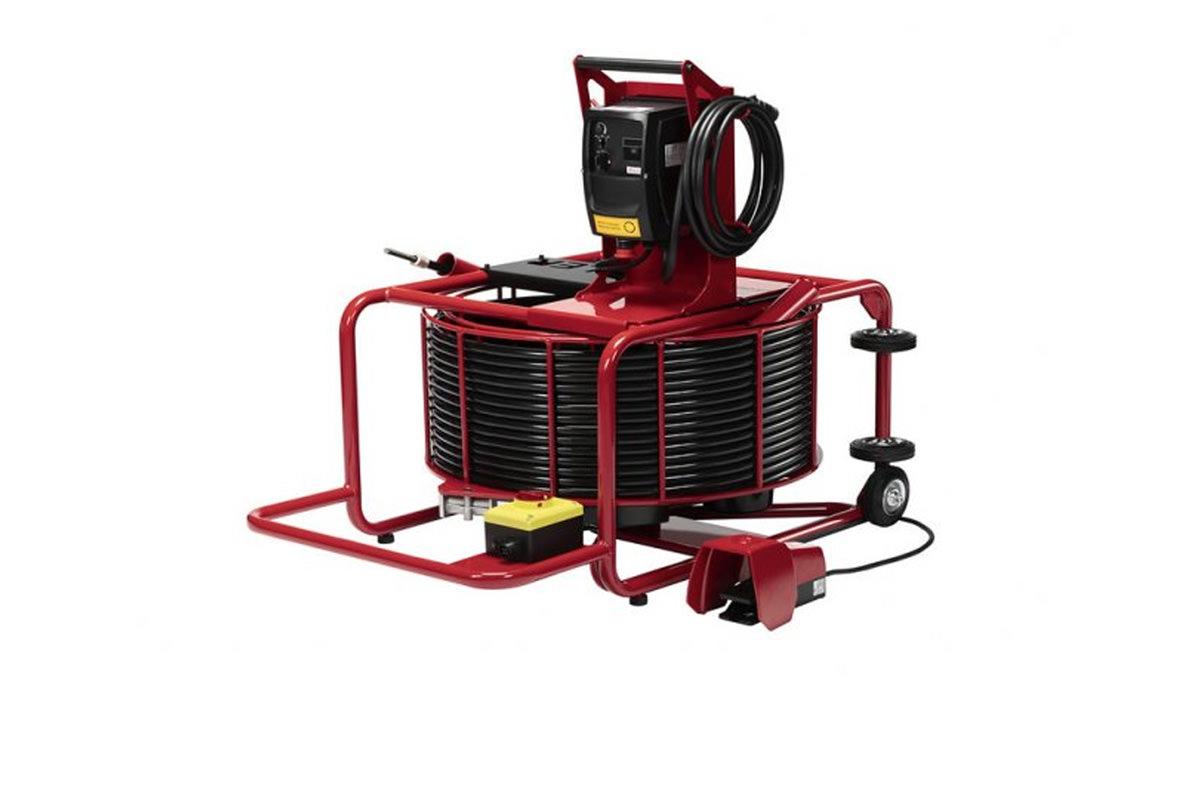

PICOTE: Pipe Cleaning Equipment

HARDWARE

PICOTE: Pipe Cleaning Equipment



PICOTE is a worldwide manufacturer of quality pipe cleaning and rehabilitation machines and equipment from Finland. Picote revolutionised the in-house rehabilitation market by developing Millers and tools to enable trenchless rehabilitation inside buildings, renovating all drains from the rooftop to the city sewer. Where Trenchless Technology is fast becoming a widely adopted way to renovate pipelines in a more economical and environmentally conscious way.

Our PICOTE inventory has an extensive range of high-speed drain cleaning tools for general unblocking, root cutting, descaling, concrete removal, lateral reinstatement, removing failed linings using specialty tools like: Chains, Special Drill Heads, Smart Cutter™, Smart Spider, Smart Sweeper and Twisters.

SYNTECH has been a distributor and approved service centre of PICOTE products in the Singapore. We also hold in stock a wide range of PICOTE milling machines, pipeline/lateral reopening tools, pipe cleaning tools and CIPP lining accessories at our facility. All PICOTE machines are designed to work with a comprehensive range of tools for small diameter drain renovation from DN32 – DN300 / 1 ¼” – 12″ pipes.

Aircraft Refueller Truck

INDUSTRIAL

Aircraft Refuellers



The Aircraft Refuellers are suitable for under-wing and over-wing aircraft refuelling operations. It is usually assembled on a fully equipped three-axle truck chassis, with refuelling being carried out from the side of the driver.



We fabricated 7  aircraft refuellers comprising of 3 x 1000 gallons and 4 x 4000 gallons in 1993 . Of these units, 3 were used in Sembawang Airbase and 2 were used in an airport in Cambodia.

Each system unit differs slightly. While all of the refuellers had both under-wing and over-wing aircraft refuelling capabilities.  Where the bigger ones were supplied with scissor lifts platforms.

In 2016, In 2016 we manufactured and supplied 2 aircraft refuellers and 1 trailer mounted refueller module to our Taiwan aviation customer based in Taiyuan International Airport.

We manufacture chassis-mounted refuellers as per customer specifications with tank capacity ranging from 5,000l to 21,000l, with flow rates ranging from 350l/min to 2,500l/min. Refuellers typically consist of a chassis, tank and fuelling & de-fuelling system.

Our engineers has to develop a performance driven vehicle to meet predetermined needs and comply with very specific regulated requirements. The challenge of driving underneath any kind of aircraft demands a sophisticated set of safety measures based on the reliability of the precision handling of our vehicle.

Many factors need to be considered in the design of an airfield refueller to achieve best refuelling results in any weather of any climate. Tanks could be made of mild steel (internally epoxy coated), stainless steel, or aluminum.  With safety provisions for static grounding cabling, fire extinguishers, fire screen, spark arrestor at the exhaust of the engine, and a brake interlock system on all pressure couplings, stowage, and emergency engine/fuel shut-off.

Based on the flow rate requirement, which normally ranges from 100 LPM to 4000 LPM, the refuelling and de-fuelling module uses internationally proven components such as internal valve, fuel & de-fuel valve, centrifugal pump, pressure control valve, fuel monitor, flow meter, under-wing pressure coupling, aviation hose for deck and hose reel, bottom-loading system with high level sensor, electrical deadman handle, and liquid fifth wheel for semi-trailer type refueller.

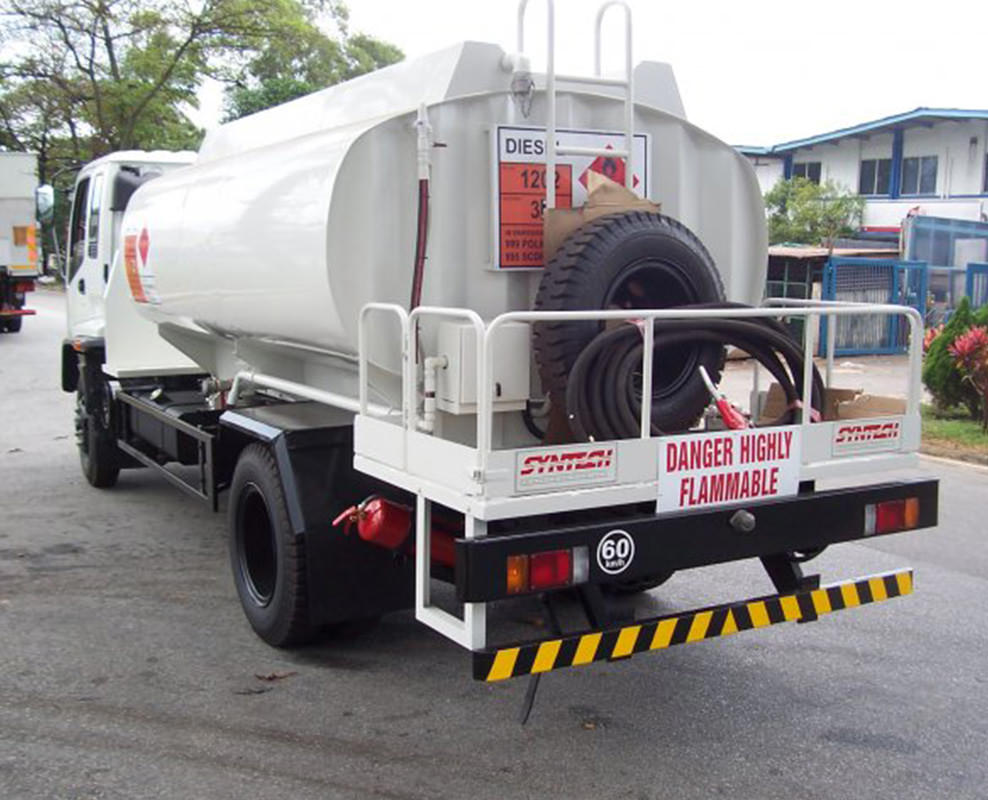

Tanker Truck

INDUSTRIAL

Tankers

SYNTECH has been building tankers since our early years. We cover most needs from the tank and vessel industry such as sewage, boilers, chemical mixing, water storage tanks and reactors.

We provide solutions for the containment of fluid storage. We have the experience needed for a variety of tank projects and capable of completing any stainless steel tank fabrication project in both our factory and on site.

Road Tanker Safety: Design, Equipment, and the Human Factor - SafeRack

We develop our tankers using carbon steel and stainless steel. When it comes to storing chemicals that aren’t compatible with carbon steel or that are too corrosive for any linings added to carbon steel tanks, non-reactive stainless steel will be used instead.

Modification for Heavy Industry Vehicles

SERVICES

Modification of Heavy Industry Vehicles

SYNTECH is a specialist of Heavy Industry Vehicles modifications.

We turn standard production chassis into specialised work platforms for all types of businesses. For decades, we have excelled in the modification of hundreds of vehicles from a great variety of heavy industries. Because all vehicles registered for use in Singapore must comply with technical standards and requirements.

As the automotive industry continues to thrive in the age of increasingly new vehicle technology, vehicle electrification, vehicle connectivity, and artificial intelligence will continue to furnish the Heavy Industrial vehicle modification market with promising innovations in the vehicle modification market.



Everything You Need to Know About Your In-Vehicle Unit (IU) | Articles | Motorist SingaporeHeavy vehicle modifications can be minor or major.

From the Vehicle components, to the features and fitted technologies, such as Camera Monitoring Systems, High-Intensity Discharge (HID) and LED headlamps, ERP in-vehicle units are minor improvements that often bring major differences to the fleet.  At SYNTECH, we prepare your vehicles to comply with internationally recognised vehicle safety standards.

Because safeguarding your operations is our speciality.

Evolving truck technology is far easier than evolving industry standards and regulations. Which is why companies are increasingly installing smarter digital recording devices and sensors in their fleet. Having visual proof from your truck camera monitoring system of an incident can be used to alert drivers quickly, and accurately to resolve safety and security concerns.

Businesses are in deeper need of specialised solutions ranging from loading platforms, cranes and specialised furnishings. We adopt new technologies and practices, to be installed, modified and adapted structually, in specialised fleets that adhere to impeccable safety standards





COMPLIANCE

Our engineers don’t only have the capability of solve your vehicle problems of existing system modification, redesign,  we also help in the registration of newly modified vehicles for regulated use on the Singapore roads with the Singapore Land Transport Authority (LTA) for approval. Whatever your use, whatever the size of your fleet. We specialise and assist in the certification  and registration of vehicles and submit Compliance with LTA on behalf of vehicle manufacturers and importers.

Vehicle Works

Minor vehicle modification works we do:

From the Vehicle components, to the features and fitted electronic technologies, such as Camera Monitoring Systems, High-Intensity Discharge (HID) and LED headlamps, ERP in-vehicle units are minor improvements that often bring major differences to the fleet. As the automotive industry continues to thrive in the age of increasingly new vehicle technology, vehicle electrification, vehicle connectivity, artificial intelligence, will continue to furnish the Heavy Industrial vehicle modification market with promising innovations in the vehicle modification market.

Major vehicle modification works we do:



Like the shortening wheelbase of truck chassis,

The wheelbase is the horizontal distance between the centers of the front and rear wheels. Vehicles with the longer wheel-base ( and ground clearance) are believed to have better ride comfort than the vehicles with shorter wheel-base. This is mainly because such vehicles have a reduced tendency to pitch & roll compared to other vehicles.

Installation of prime mover 5th wheel coupling, and the

understanding fifth wheel couplings



Fifth-wheel couplings provide the link between a semi-trailer and the towing truck, tractor unit, leading trailer or dolly. The 5th wheel trailer has a pin at the front, which the hitches on the truck clamps. A fifth-wheel hitch enables optimal weight distribution.



Installation of side guards and under-run bumper, tool box etc.

In the event of a rear-end collision, the under-run bumper prevents smaller vehicles from becoming lodged underneath the truck or trailer. There are three main underrun protection solutions. Fixed, Folding and Sliding.

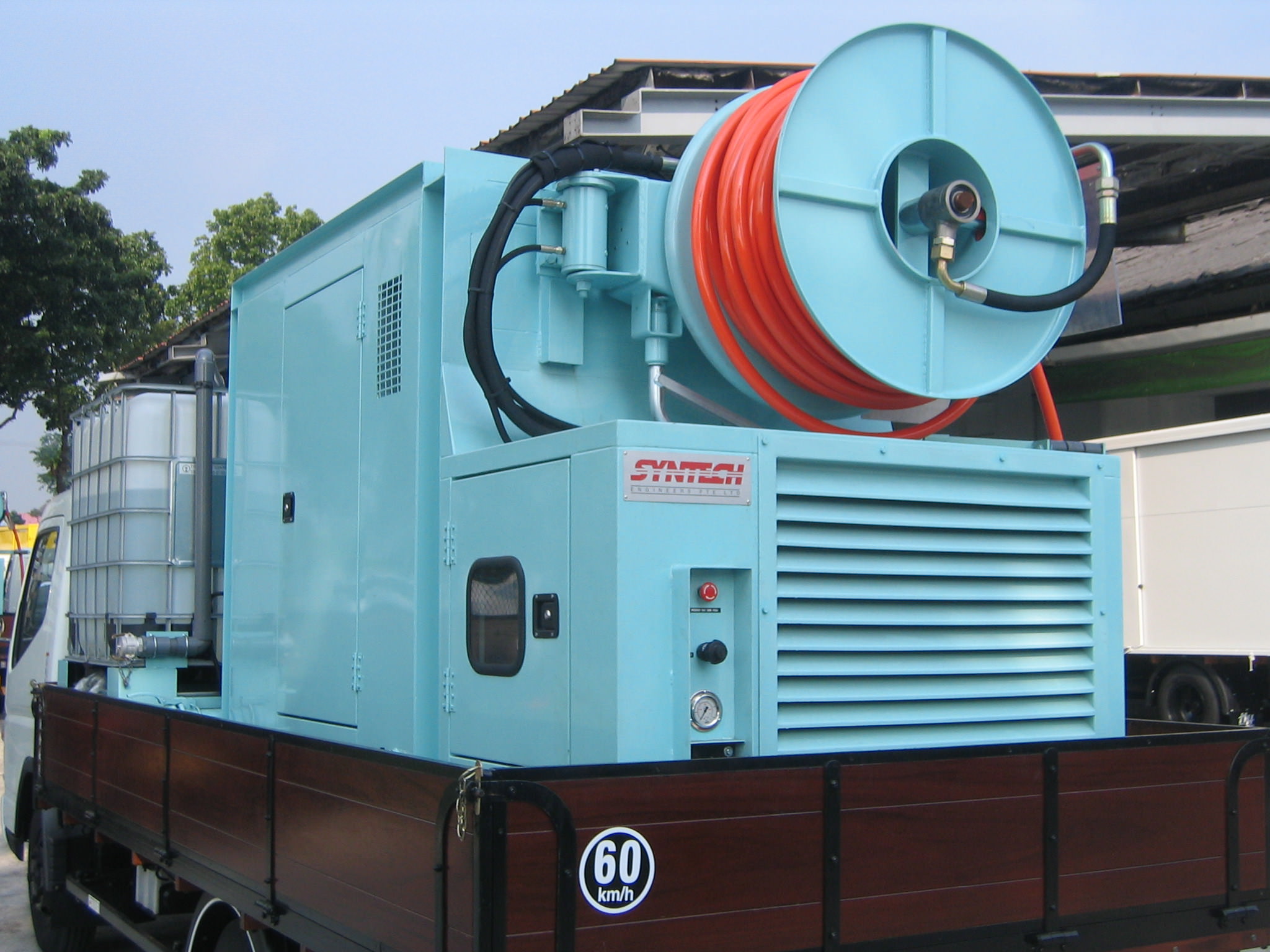

Sewer Jetting Equipment

ENVIRONMENTAL

Sewer Jetting Equipment

Rioned LogoSYNTECH Engineers mounts Rioned sewer jetting machines onto your trailers and commercial vans to for all your sewer cleaning needs.

We also manufacture our own sewer jetting machines that can fit your custom needs upon request.



SYNTECH Engineers is an official distributor of Rioned sewer jetting machines in Singapore. Rioned is a renowned Dutch company producing high quality sewer cleaning jetting machines mounted on vehicles.
